NEW QUESTION # 56
In a FlexVPN deployment, the spokes successfully connect to the hub, but spoke-to-spoke tunnels do not form. Which troubleshooting step solves the issue?
- A. Verify that the spoke receives redirect messages and sends resolution requests.
- B. Verify the spoke configuration to check if the NHRP redirect is enabled.
- C. Verify that the tunnel interface is contained within a VRF.
- D. Verify the hub configuration to check if the NHRP shortcut is enabled.
Answer: A
Explanation:
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/sec_conn_dmvpn/configuration/15-mt/sec-conn- dmvpn-15-mt-book/sec-conn-dmvpn-summ-maps.pdf
NEW QUESTION # 57
Which configuration construct must be used in a FlexVPN tunnel?
- A. multipoint GRE tunnel interface
- B. EAP configuration
- C. IKEv2 profile
- D. IKEv1 policy
Answer: C
Explanation:
Section: Remote access VPNs
NEW QUESTION # 58
When a FlexVPN is configured, which two components must be configured for IKEv2? (Choose two.)
- A. proposal
- B. method
- C. preference
- D. persistence
- E. profile
Answer: A,E
NEW QUESTION # 59
Refer to the exhibit. Which type of mismatch is causing the problem with the IPsec VPN tunnel?
- A. Phase 1 policy
- B. preshared key
- C. transform set
- D. crypto access list
Answer: B
Explanation:
Section: Troubleshooting using ASDM and CLI
Explanation/Reference: https://www.cisco.com/c/en/us/support/docs/security-vpn/ipsec-negotiation-ike-protocols/5409- ipsec-debug-00.html#ike
NEW QUESTION # 60
Which technology works with IPsec stateful failover?
- A. HSRP
- B. VRRP
- C. GLBR
- D. GRE
Answer: A
Explanation:
Section: Secure Communications Architectures
Explanation/Reference: https://www.cisco.com/c/en/us/td/docs/ios/12_2/12_2y/12_2yx11/feature/guide/ ft_vpnha.html#wp1122512
NEW QUESTION # 61
Which requirement is needed to use local authentication for Cisco AnyConnect Secure Mobility Clients that connect to a FlexVPN server?
- A. use of certificates instead of username and password
- B. EAP-AnyConnect
- C. AnyConnect profile
- D. EAP query-identity
Answer: C
NEW QUESTION # 62

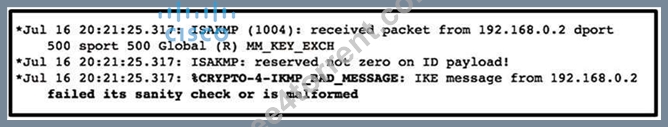

Refer to the exhibit.
An IKEv2 site-to-site tunnel between an ASA and a remote peer is not building successfully. What will fix the problem based on the debug output?
- A. Specify the peer IP address in the tunnel group name.
- B. Correct crypto access list on both VPN devices.
- C. Install the correct certificate to validate the peer.
- D. Ensure crypto IPsec policy matches on both VPN devices.
Answer: D
Explanation:
To fix the problem with the IKEv2 site-to-site tunnel between an ASA and a remote peer based on the debug output, you should ensure that the crypto IPsec policy matches on both VPN devices. The debug output indicates that the crypto policies on the two VPN devices are mismatched, which is preventing the tunnel from building successfully. Installing the correct certificate to validate the peer, correcting the crypto access list on both VPN devices, and specifying the peer IP address in the tunnel group name will not fix the problem.
NEW QUESTION # 63
Which requirement is needed to use local authentication for Cisco AnyConnect Secure Mobility Clients that connect to a FlexVPN server?
- A. use of certificates instead of username and password
- B. EAP-AnyConnect
- C. AnyConnect profile
- D. EAP query-identity
Answer: C
Explanation:
Reference:
https://www.cisco.com/c/en/us/support/docs/security/flexvpn/200555-FlexVPN-AnyConnect-IKEv2- Remote-Access.html
NEW QUESTION # 64
Why must a network engineer avoid usage of the default X.509 certificate when implementing clientless SSLVPN on an ASA?
- A. The certificate is regenerated at each reboot.
- B. The certificate must be managed by the local CA.
- C. The certificate is too weak to provide adequate security.
- D. The default X.509 certificate is not supported for SSLVPN.
Answer: A
Explanation:
By default, the ASA generates a self-signed X.509 certificate upon startup. This certificate is used in order to serve client connections by default. It is not recommended to use this certificate because its authenticity cannot be verified by the browser. Furthermore, this certificate is regenerated upon each reboot so it changes after each reboot. https://www.cisco.com/c/en/us/support/docs/security-vpn/webvpn-ssl-vpn/119417-config-asa-00.html
NEW QUESTION # 65
Refer to the exhibit.
All internal clients behind the ASA are port address translated to the public outside interface that has an IP address of 3.3.3.3. Client 1 and client 2 have established successful SSL VPN connections to the ASA.
What must be implemented so that "3.3.3.3" is returned from a browser search on the IP address?
- A. Tunnel Network List Below under Group Policy
- B. Exclude Network List Below under Group Policy
- C. Tunnel All Networks under Group Policy
- D. Same-security-traffic permit inter-interface under Group Policy
Answer: A
Explanation:
To ensure that "3.3.3.3" is returned from a browser search on the IP address, you must configure the ASA with the Tunnel Network List Below option under the Group Policy. This allows all internal clients behind the ASA to be port address translated to the public outside interface with the IP address of 3.3.3.3. This will ensure that the correct IP address is returned from a browser search.
NEW QUESTION # 66
Refer to the exhibit.
The DMVPN tunnel is dropping randomly and no tunnel protection is configured. Which spoke configuration mitigates tunnel drops?
- A. Option B
- B. Option C
- C. Option A
- D. Option D
Answer: B
NEW QUESTION # 67
A network engineer must design a clientless VPN solution for a company. VPN users must be able to access several internal web servers. When reachability to those web servers was tested, it was found that one website is not being rewritten correctly by the ASA.
What is a potential solution for this issue while still allowing it to be a clientless VPN setup?
- A. Set up a NAT rule that translates the ASA public address to the web server private address on port 80.
- B. Set up a WebACL to permit the IP address of the web server.
- C. Set up Cisco AnyConnect with a split tunnel that has the IP address of the web server.
- D. Set up a smart tunnel with the IP address of the web server.
Answer: A
NEW QUESTION # 68
An administrator is designing a VPN with a partner's non-Cisco VPN solution. The partner's VPN device will negotiate an IKEv2 tunnel that will only encrypt subnets 192.168.0.0/24 going to 10.0.0.0/24. Which technology must be used to meet these requirements?
- A. crypto map
- B. DMVPN
- C. GETVPN
- D. VTI
Answer: A
NEW QUESTION # 69
Under which section must a bookmark or URL list be configured on a Cisco ASA to be available for clientless SSLVPN users?
- A. tunnel-group (webvpn-attributes)
- B. webvpn (global configuration)
- C. tunnel-group (general-attributes)
- D. webvpn (group-policy)
Answer: B
NEW QUESTION # 70
While troubleshooting, an engineer finds that the show crypto isakmp sa command indicates that the last state of the tunnel is MM_KEY_EXCH. What is the next step that should be taken to resolve this issue?
- A. Confirm that the pre-shared keys match on both devices.
- B. Verify that the ISAKMP proposals match.
- C. Correct the peer's IP address on the crypto map.
- D. Ensure that UDP 500 is not being blocked between the devices.
Answer: C
NEW QUESTION # 71
Refer to the exhibit.
Which type of VPN implementation is displayed?
- A. IKEv2 backup gateway
- B. IKEv1 cluster
- C. IKEv2 reconnect
- D. IKEv2 load balancer
Answer: D
NEW QUESTION # 72
......
Cisco 300-730 (Implementing Secure Solutions with Virtual Private Networks) certification exam is designed for IT professionals who are interested in validating their skills and knowledge related to implementing secure solutions using Virtual Private Networks (VPNs). Implementing Secure Solutions with Virtual Private Networks certification exam is ideal for professionals who are responsible for implementing and managing VPNs in their organization's network infrastructure.
